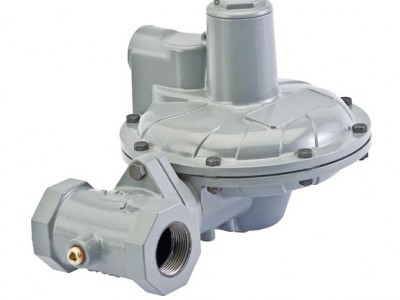

Fisher CS400 系列直接作用式簧压调压器可以满足商用和轻工业设施中的多种减压应用。 该调压器具有很大的灵活性，是因为这种调压器提供有多种阀体尺寸和端部连接方式、出口压力设置、阀孔尺寸以及内取压或外取压选项。 除了应用上的灵活性，CS400 系列还提供多种过压保护选项，能够满足您的应用需求。广州奥丽斯特燃气设备有限公司咨询电话：零贰零-捌贰叁贰玖陆贰伍，壹叁柒壹零叁陆壹贰陆零/13710361260-陆熙。
FISHER CS400减压阀功能
有多种阀体尺寸和端部连接方式可供选择
具有良好的固定系数/压力系数测量 (PFM) 精度
现场可从内部感应转为外部感应，适合全开监控结构
有灰铸铁、球墨铸铁和钢三种材质的阀体可选
仅使用标准工具即可调节压力和拆卸阀孔
易于维护
FISHER CS400减压阀规格
可选配置独立调压器、非泄压、标志泄压、内部或外部取压、一体式 True-Monitor、VSX4 快速切断模块
阀体尺寸和端面连接方式灰 CI：1-1/4、1-1/4x1-1/2、1-1/2、2 NPT、NPS2/DN50、CL125 FF
DI：1-1/4、1-1/2、2NPT、Rp 1-1/4、1-1/2、2、NPS2/DN50、CL125 FF、CL150 FF 或 PN10/16
ST：1-1/4、1-1/2 NPT、Rp 1-1/4、1-1/2
工作入口压力125 psig / 8.6 bar
出口压力范围3.5 in. w.c. 至 5.5 psig / 9 至 380 mbar 之间的九个范围
紧急出口（壳体）压力25 psig / 1.7 bar
避免内部零件损坏的出口压力超出设定点 5 psi / 0.34 bar
工作出口压力5.5 psig / 380 mbar
标志泄压Cg = 67温度适用范围-20° 至 150°F / -29° 至 66°C
TM600 型 True-Monitor™
规格控制压力：11"wc-7.5 psi/27-517 mbar
工作出口压力 CS403 带 TM600：7.5 psi/517 mbar
泄放孔：1/4 NPT
外部感应：1/4 NPT
壳体材质：铝
取压方式：与调压器相同
VSX4 型快速切断模块规格
OPSO：10"wc-19psi/25-1300mbar
OPSO/UPSO：
OPSO：0.73"wc-8.7psi/50-600mbar
UPSO：4"wc-7.3psi/10-500mbar
泄放孔：1/4 NPT
外部感应：1/4 NPT
壳体材质：铝
取压方式：内部或外部
单位名称：广州奥丽斯特燃气设备有限公司
联系方式：陆熙020-82329625，13710361260
邮件地址：1318120303@qq.com
单位地址：广东省广州市天河区珠村东环路110号珠园大厦402室

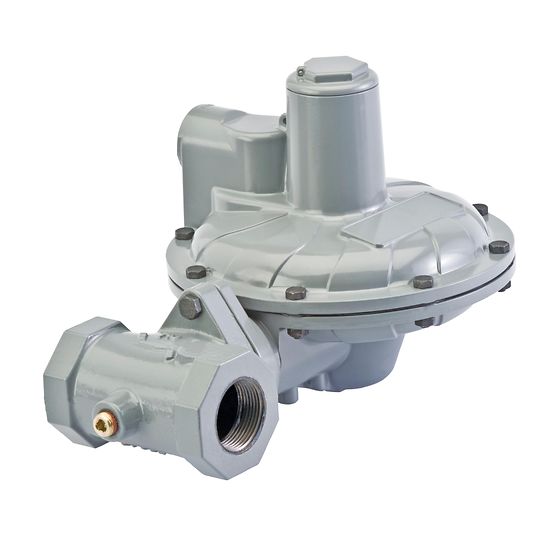

Fisher CS400 Series direct-operated, spring-loaded regulators provide pressure-reducing applications for commercial and light industrial installations. This flexibility is provided by the numerous body sizes and end connections, outlet pressure settings, orifice sizes, as well as the option for internal or external pressure registration. In addition to application flexibility, the CS400 Series offers multiple overpressure protection options to meet your demands on application requirements.
Features
Wide Variety of Body Sizes and End Connections
Fixed Factor / Pressure Factor Measurement (PFM) Accuracy Capabilities
Field Convertible from Internal Sensing to External Sensing for Wide-Open Monitor Construction
Available in Gray Cast Iron, Ductile Iron, and Steel Body Materials
only Standard Tools Required for Pressure Adjustment and Orifice Removal
Easy to Maintain
Specifications
Available Configurations
Stand-Alone Regulator, Non-relief, Token relief, Internal or External pressure registration, Integral True-Monitor, VSX4 Slam-Shut Module
Body Sizes and End Connection Styles
Gray CI: 1-1/4, 1-1/4x1-1/2, 1-1/2, 2 NPT, NPS2/DN50, CL125 FF
DI: 1-1/4, 1-1/2, 2NPT, Rp 1-1/4, 1-1/2, 2, NPS2/DN50, CL125 FF, CL150 FF, or PN10/16
ST: 1-1/4, 1-1/2 NPT, Rp 1-1/4, 1-1/2
Maximum Operating Inlet Pressure
125 psig / 8,6 bar
Outlet Pressure Range
3.5-inches w.c. to 5.5 psig / 9 to 380 mbar in nine ranges
Maximum Emergency Outlet Pressure (Casing)
25 psig / 1,7 bar
Maximum Outlet Pressure to Avoid Internal Parts Damage
5 psi / 0,34 bar over set point
Maximum Operating Outlet Pressure
5.5 psig / 380 mbar
Pressure Registration
Internal or External
Token Relief
Cg = 67
Temperature Capabilities
-20° to 150°F / -29° to 66°C
Approximate Weights
Type TM600 True-Monitor™ Specifications
Control Press: 11wc-7.5psi/27-517mbar
Max Op Outlet Press TM600 on CS403:7.5psi/517mbar
Vent:1/4 NPT
Ext Sense: 1/4 NPT
Case Material: AL
Press Reg: Same as Regulator
Type VSX4 Slam-Shut Module Specifications
OPSO:10wc-19psi/25-1300mbar
OPSO/UPSO:
OPSO:0.73wc-8.7psi/50-600mbar
UPSO:4wc-7.3psi/10-500mbar
Vent:1/4 NPT
Ext Sense:1/4 NPT
Case Material:AL
Press Reg:Int or Ext
